Need to Know podcast–Episode 268

In this episode I speak with Ian Mikutel from Microsoft who is Head of Product for Microsoft Whiteboard for Teams & Surface. Ian shares some exciting news about the recently released updates for Microsoft Whiteboard as well as what is coming down the pipeline. I love Microsoft Whiteboard and use it regularly and I’d encourage you to also look at the enhancements it now provides, especially inside Microsoft Teams. of course, there are plenty of updates from the Microsoft Cloud that I’ll share with you. so listen along and let me know what you think.

This episode was recorded using Microsoft Teams and produced with Camtasia 2020.

Brought to you by www.ciaopspatron.com

Take a listen and let us know what you think – feedback@needtoknow.cloud

You can listen directly to this episode at:

https://ciaops.podbean.com/e/episode-268-ian-mikutel/

Subscribe via iTunes at:

https://itunes.apple.com/au/podcast/ciaops-need-to-know-podcasts/id406891445?mt=2

The podcast is also available on Stitcher at:

http://www.stitcher.com/podcast/ciaops/need-to-know-podcast?refid=stpr

Don’t forget to give the show a rating as well as send us any feedback or suggestions you may have for the show.

Resources

Ian Mikutel – Twitter, Linkedin

Microsoft Whiteboard

Meet the new Microsoft Whiteboard designed for Hybrid Work

Microsoft Whiteboard roadmap

CIAOPS Secwerks event

Explore Microsoft 365 extensibility opportunities with the Microsoft 365 Extensibility look book

Bringing Visio to Microsoft 365: Diagramming for everyone

A new, more powerful, and customizable Microsoft Bookings is here

Windows 11 leak reveals new UI, Start menu, and more

Announcing new Microsoft Defender for Endpoint capabilities on Android and iOS

Monitoring Microsoft Security Posture in Azure Sentinel

Behind the scenes of business email compromise: Using cross-domain threat data to disrupt a large BEC campaign

Microsoft acquires ReFirm Labs to enhance IoT security

Say it with Microsoft Dictate

Announcing a more intuitive sharing experience across Microsoft 365 for better collaboration

Using Defender for Endpoint API and Power Automate

I recently detailed:

Using Defender for Endpoint API and PowerShell

to produce this type of output


which is all well and good but does lack some flexibility when it comes to output as well as being something you need to manually initiate. There is way to deliver more using Power Automate.

To do this you’ll still need to complete the initial steps from the previous article and create an Azure AD app in the destination tenant and save the access information. This basically allows access to the destination tenant to extract data. However, now, rather than embedding that sensitive information inside a public script and having the credentials ‘in the open’, they can be securely stored in Azure Key Vault. This will provide a secure repository for the Azure AD app credentials while still allowing them to be readily accessible by service like Power Automate. To use Azure Key Vault you will need a paid Azure subscription.

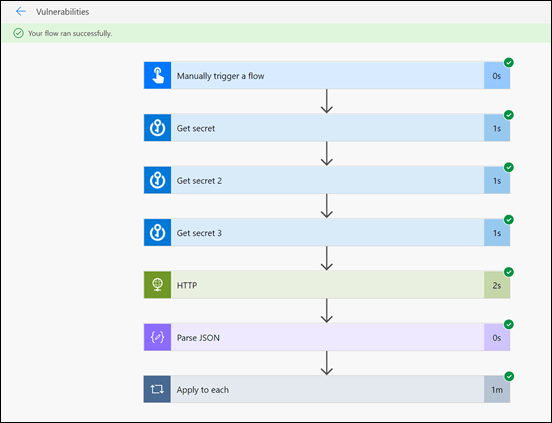

In a nutshell, we want to create a basic Flow in Power Automate like that shown above. In this case it is initiated manually but it could just as easily be triggered on a schedule using the Recurrence action in Flow. Next, the required parameters are grabbed from the Azure Key Vault.

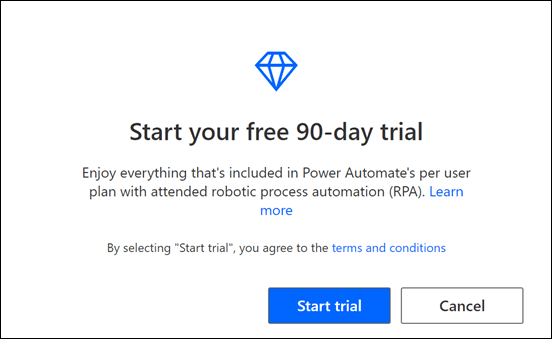

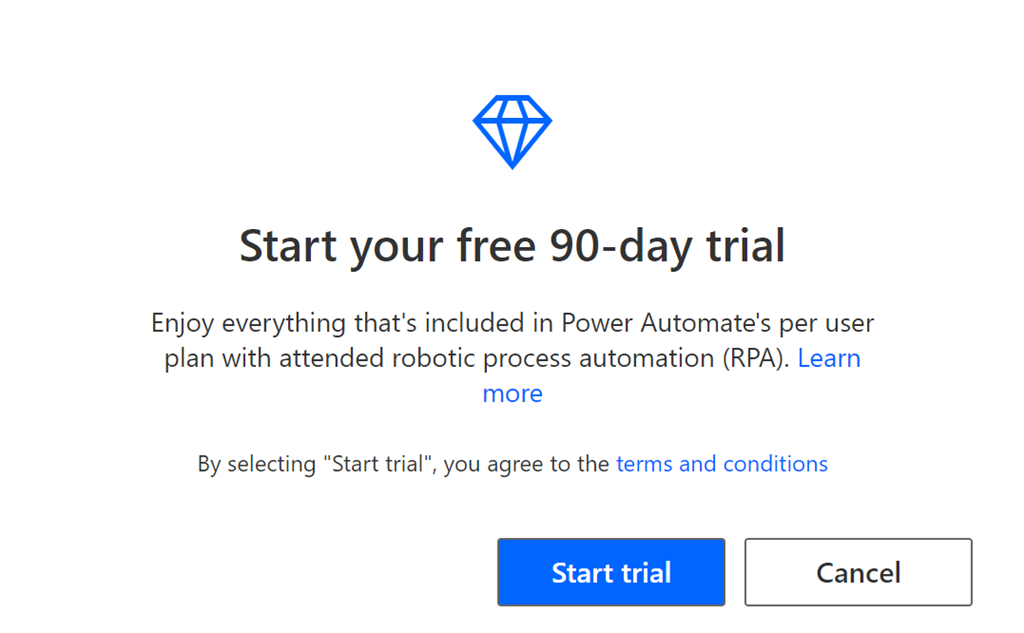

When you are building this Flow, if you see a dialog like shown above, it means you don’t have a Power Automate license that includes the ability to use Premium connectors like Azure Key Vault and HTTP. Licensing the Power Platform is beyond the scope of this article but, if you see that dialog you’ll probably need to purchase a stand alone license of Power Automate to gain access to the required premium connectors.


You construct the HTTP action as shown above, using the parameters from the Azure Key Vault to access the Azure AD app via the API URL:

https://api.securitycenter.microsoft.com/api/machines/SoftwareVulnerabilitiesByMachine

that will return a list of vulnerabilities exactly like the PowerShell script did in JSON format.


After parsing the JSON output from the HTTP action that executes the API request, the results are mapped to a simple SharePoint list as shown.

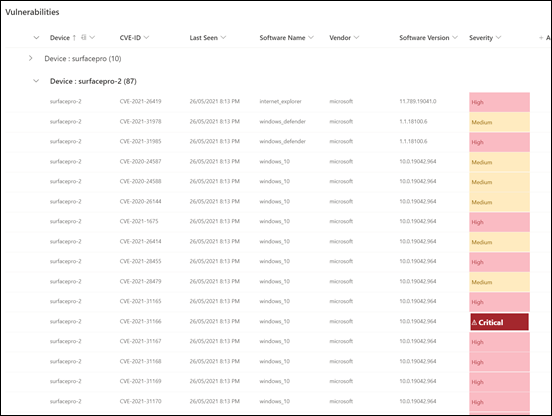

Thanks to the magic of SharePoint, you get results that look like the above, which is vulnerabilities by machine, or


vulnerabilities by severity above, thanks to the ability to easily sort lists in SharePoint.

You’ll also notice that conditional column formatting has been applied to to highlight the severity. Yet another benefit SharePoint lists provide.

So the basis of all of this is an Azure AD app with the appropriate permissions inside a tenant that you wish to obtain information from. From there you can use an API request using PowerShell or Power Automate or whatever, to pull the desired information. The easily way to format that information is to send the results to SharePoint, as done here, to slice and dice as well as display the information any way you want.

This output could as easily have been sent to Power BI, Power Apps, an email, or any other service in Microsoft 365. That’s the benefit of using the Power Platform and things like Flow to get the information. Now the possibilities are endless.

A few important point to note about this:

1. You are in control of the permissions and credentials for obtaining the information using the API. You are not surrendering or trusting these to a third party to access the source data.

2. Credentials are save in Azure Key vault which ensure they are secure and access is controlled by you.

3. You can use this technique with just about any API to import information. All you need is the API URL and the appropriate permissions inside the Azure AD app.

4. You can extract information from multiple tenants into a single source tenant if you wish, you are not limited to just pulling information from the tenant where the Flow was created.

5. The extracted data can be mapped to any Microsoft 365 service. Here it was to SharePoint as that is the easiest, but it could just as well be sent to any Microsoft 365 service. This provides a huge amount of flexibility.

6. You can modify, enhance, extend, etc the Flow at any stage to suit any changing needs.

7. The Flow and the process it executes lives inside you Microsoft 365 tenant and is subject to all the compliance and security options that Microsoft provides here.

8. You can trigger the data extraction to happen on a scheduled basis of your choice with Flow easily.

I see lots and lots of benefits of using this process to regularly pull information from any tenant on just about anything and report it in what ever way you wish. It puts you in control of the whole process, and most importantly, the security of executing this, which in a world moving to zero trust, is a huge benefit.

Hopefully, this will inside you to start playing around with the possibilities when it comes to API and Power Automate.

Using the Defender for Endpoint API and PowerShell

The Microsoft Defender for Endpoint API is now available. More details can be found here:

https://docs.microsoft.com/en-us/microsoft-365/security/defender-endpoint/management-apis?view=o365-worldwide

Those APIs will enable you to automate workflows and innovate based on Defender for Endpoint capabilities.

In essence, you can now manipulate Defender for Endpoint capabilities using a tool like PowerShell. I’ll show you how to get started.

The first thing you’ll need to do is create an Azure AD app in the destination tenant. I’ve covered off how to do this via the web interface here:

https://blog.ciaops.com/2019/04/17/using-interactive-powershell-to-access-the-microsoft-graph/

and using a PowerShell script I wrote here:

https://blog.ciaops.com/2020/04/18/using-the-microsoft-graph-with-multiple-tenants/

You’ll also need to provide this Azure AD app the appropriate permissions in the Defender for Endpoint API (as well as have a license for Defender for Endpoint in your tenant). To do this, navigate to the Azure AD app you just created and follow the process to add an API permission (you’ll see this process in the above blog posts).


You’ll need to however select APIs my organization uses from the menu, and then search for WindowsDefenderATP as shown above to locate the right API.


Now select Application permissions on the right from the screen that appears as shown above.

If you have a look at the:

Export software vulnerabilities assessment per device

You’ll see in permissions:


You’ll see the permission required for this process is Vulnerability.Read.All.


Search for, and select this Vulnerability.Read.All permission in the list as shown above and select it. Scroll down to the bottom of the page and select the Add permissions button to complete the process.

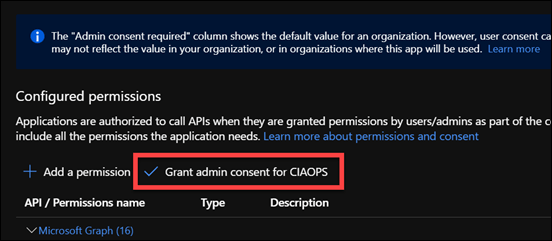

Select the Grant admin consent for <tenant> option at the top now to apply these permissions you have just selected to add to this Azure AD app.

In summary, an Azure AD app is used to provide access to the Defender for Endpoint API. This access also requires the appropriate permissions be assigned to that Azure AD app for the Defender for Endpoint API.

When the Azure AD app was initially created the following parameters should have been available:

1. Client (or Application) ID

2. Tenant ID

3. Client (or Application secret)

You’ll need to enter these into the script I have created here:

https://github.com/directorcia/Office365/blob/master/endpoint-api-svbm.ps1

around line 20:


Ensure your values these are kept secure! I have discussed ways of doing this using the Azure Keyvault or encrypted XML files previously.


After inserting your own Azure AD app values into the script, and running the script you should see the results like that shown above. The output is a list of software vulnerabilities by machine in your Defender for Endpoint environment sorted by machine name and last seen timestamp.

The Defender for Endpoint API has lots of options as you can see here:

https://docs.microsoft.com/en-us/microsoft-365/security/defender-endpoint/exposed-apis-list?view=o365-worldwide#in-this-section

You may need to repeat the process of assigning permissions to your Azure AD app to execute other API commands remember. However, being able to access this information via an API makes it easy to import into things like Power BI and Power Automate as well as access multiple tenant with a single script. Hopefully, this article give you a place to start accessing all the Defender for Endpoint information programmatically.

Cybercrime reporting poll

pexels-donald-tong-143580

I’ve created an anonymous public poll asking the question:

Are you reporting cybercrime incidents, like ransomware, to government or police authorities?

which is here:

https://forms.office.com/r/mENdwmaXRj

as the results rolling you can see the summary here:

http://bit.ly/ciapoll01

I’m interested to see what people are doing when it comes to reporting incidents to authorities?

Exchange user best practices script


I’ve created a new Exchange user best practices summary script which you can find at:

https://github.com/directorcia/Office365/blob/master/o365-mx-usr-all.ps1

The idea with this script is to give you a quick visual summary of your user mailboxes to ensure they conform to best practices.

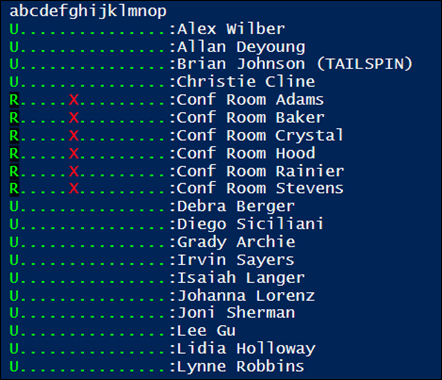

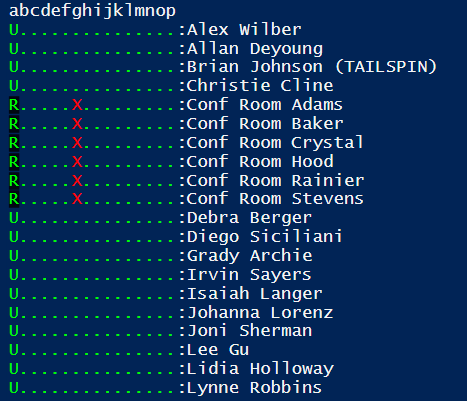

When you run the script without any command line options you will see the above output. Each row is a user with their name at the end of the line. The entries on the right provide you an indication of settings status. A green dot is for good and a red X is for bad. You will see this creates a matrix of settings for each mailbox. These settings are designated by a letter (currently a through p). These letters correspond to the following settings:

a = Mailbox type: S = Shared, R = Resource, U = User
b = Enabled
c = Inactive
d = Remote PowerShell Enabled
e = Retain Deleted Items for at least 30 days
f = Deliver to Mailbox and Forward
g = Litigation Hold Enabled
h = Archive Mailbox Status
i = Auto-expanding Archive Enabled
j = Hidden From Address Lists Enabled
k = POP Enabled
l = IMAP Enabled
m = EWS Enabled
n = EWS Allow Outlook
o = EWS Allow Mac Outlook
p = Mailbox Audit Enabled

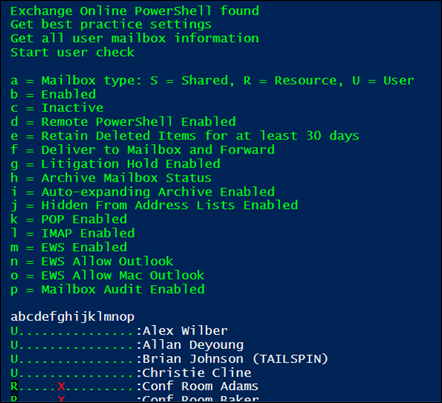

If you use the –verbose command line option, you’ll get additional information about the script operation as you see above.

If you use the –debug command line option, a log file of the script process will be created in the parent directory.

If you use the –prompt command line option, the script will wait after each user for you to press ENTER.

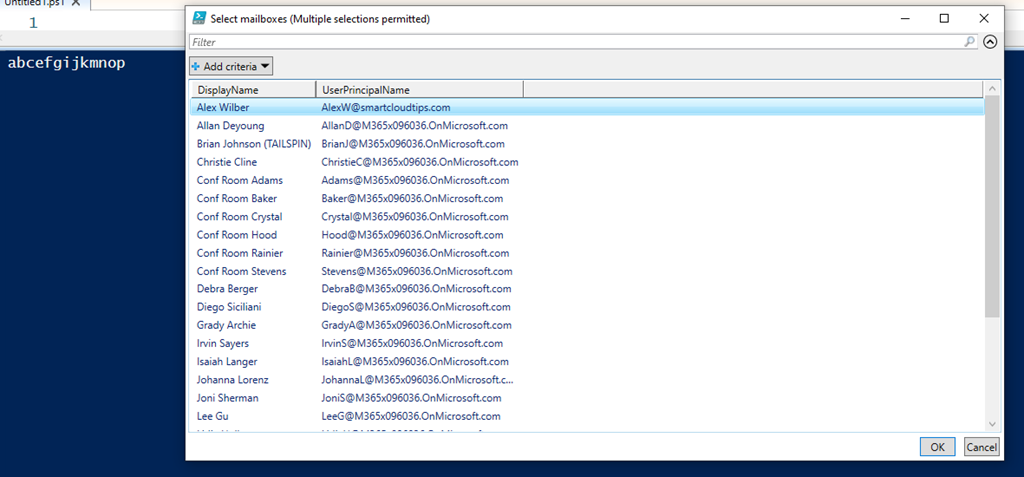

If you use the –select command line option, the script will prompt you to select the users you wish to display.

If you also specify any letter from, currently, a through p on the command line, those settings will not be checked by the script. Thus, specifying dhl on the command line will not check or display Remote PowerShell Enabled (setting = d), Archive Mailbox Status (setting = h) or IMAP enabled (setting = l).

Thus:

.\o365-mx-usr-all.ps1 dhl

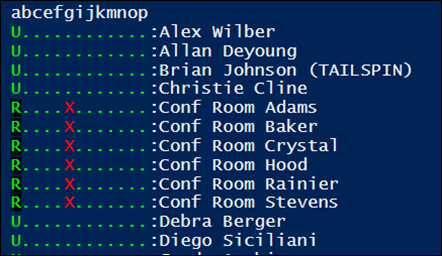

will display:


(note: no d, h or l in the output)

and

.\o365-mx-usr-all.ps1 dhl –select

will display:


no d, h or l settings as well as prompting for selection of users to check and display.

The script requires that you are connected to Exchange Online first via PowerShell prior and this can be done using my script:

https://github.com/directorcia/Office365/blob/master/o365-connect-exo.ps1

In summary then, this script when run without any command line options is designed to give you a quick reference to your user mailboxes and whether they have best practice settings enabled. You can also run the script with number of different command line options to create a log, individually select users and settings to test as well as pause after each user if desired.

I’ll continue to update and improve this script over time so make sure you follow my Office 365 GitHub repository, which you can find here:.

https://github.com/directorcia/Office365/

Prevent alerts from DiscoverySearchMailbox


When you set up bulk alerting for mailboxes you may end up enabling alerts for system mailboxes like DiscoverySearchMailbox as shown above. This will mean receiving regular alerts about changes to that mailbox by the system. This basically means Exchange Online is performing some expected administrative process on a mailbox, which triggers a configured alert.

To reduce the noise caused by these alerts you can do the following to disable it:


Firstly connect to Exchange Online using PowerShell. My script for that is here:

https://github.com/directorcia/Office365/blob/master/o365-connect-exo.ps1

next run the command to find any DiscoverySearchMailbox

get-mailbox -ResultSize unlimited | Where-Object {$_.name -MATCH “Discovery”} | Select-Object alias, displayname, auditenabled

which should give you a result like shown above.

$dsm = get-mailbox -ResultSize unlimited | Where-Object {$_.name -MATCH “Discovery”}

Run the above command to save the mailbox details to a variable. Then run:

set-mailbox -identity $dsm.alias -AuditEnabled $false

to disable auditing for that mailbox.


if you now re-run

get-mailbox -ResultSize unlimited | Where-Object {$_.name -MATCH “Discovery”} | Select-Object alias, displayname, auditenabled

you should find that the auditing is now disabled for that mailbox as shown above.

Microsoft Teams Webinars not allowing registrations for everyone

I have been looking forward to the new Teams Webinar functionality. So as soon as I saw it appeared in my tenant I was keen to implement it.


I went to the calendar app inside Microsoft Teams and displayed all the meeting options available in the top right as shown above. In there I could see that I had the Webinar option, which mean that I was in theory good to set up a webinar.


However, I discovered I had a problem that I couldn’t require registration For everyone as shown above. The  option was greyed out!

A little digging revealed this article:

Set up for webinars in Microsoft Teams

which indicated I need to run the following PowerShell commands:

Set-CsTeamsMeetingPolicy -AllowPrivateMeetingScheduling $True

and

Set-CsTeamsMeetingPolicy -WhoCanRegister Everyone

to allow anyone, including anonymous users, to register for webinars.

So, I ran these commands and waited, and waited, and waited but the For Everyone option would still not allow selection??

After much investigation here is what solved the issue for me.

I went into the Teams administration area and selected Users on the left or you can use the direct link:

https://admin.teams.microsoft.com/users

I then found the user in my tenant I wanted to check and select them.


I then selected Policies from the menu in the middle of the page as shown above.


In my case, you’ll note that the Meeting policy is set to RestrictedAnonymousAccess (Direct) as shown. I then selected Details button and the following dialog appeared from the right:


RestrictedAnonymousAccess didn’t sound like the right option to have set, so I closed that dialog and selected the Edit button to change the policy assignments.


I changed the Meeting policy option to Global (Org-wide default) from the list that appeared and saved the changes.


I received an assignment message at the top of the screen and the Meeting policy value changed to Global (Org-wide default) as shown above.


After about one hour or so I could now see the For Everyone option in the Teams webinar registration section could be selected and I was good to go!

I have no idea why the Meeting policy had changed from Global To Restricted but I found the same configuration on another tenant I have. It may have something to do with the security I set up for my environments. Not sure. However, hopefully, if you see the same issue you now know where to look to get it sorted!

CIAOPS Need to Know Microsoft 365 Webinar – June

laptop-eyes-technology-computer

I think we should  try something a little different this month for the session. I’m going to attempt to use the new Microsoft Teams Webinars feature. For anyone who has attended a previous session this means the registration process will look a little different, but in the end it should achieve the same result but with less manual work by me. To start with you need to navigate to:

http://bit.ly/n2k2106

and submit your registration details. Shortly after this you should receive an automated email from Microsoft Teams confirming your registration, including all the event details as well as a calendar invite!

How this all works come webinar time I’m still working out, but hopefully I should be across it all before the webinar starts. However, I’m sure there will be things that I’ll learn during the process, so if you want to see what unfolds then you best register to find and be part of the inaugural CIAOPS Teams webinar!

The topic for this month will be Device Management. I’ll dive into how you connect and manage devices in Microsoft 365 including iOS, Android and Windows devices. You’ll see how Microsoft 365 Device Management is a great way to improve the security of your information environment. As always, I’ll also share the latest news and events from Microsoft and as always, there’ll be plenty of time for your questions, so I hope you’ll join me at the event.

You can register for the regular monthly webinar here:

June Webinar Registrations

The details are:

CIAOPS Need to Know Webinar – June 2021
Friday 25th of June 2021
11.00am – 12.00am Sydney Time

All sessions are recorded and posted to the CIAOPS Academy.

The CIAOPS Need to Know Webinars are free to attend but if you want to receive the recording of the session you need to sign up as a CIAOPS patron which you can do here:

http://www.ciaopspatron.com

or purchase them individually at:

http://www.ciaopsacademy.com/

Also feel free at any stage to email me directly via director@ciaops.com with your webinar topic suggestions.

I’d also appreciate you sharing information about this webinar with anyone you feel may benefit from the session and I look forward to seeing you there.
